Position:HOMEModular cleaning system

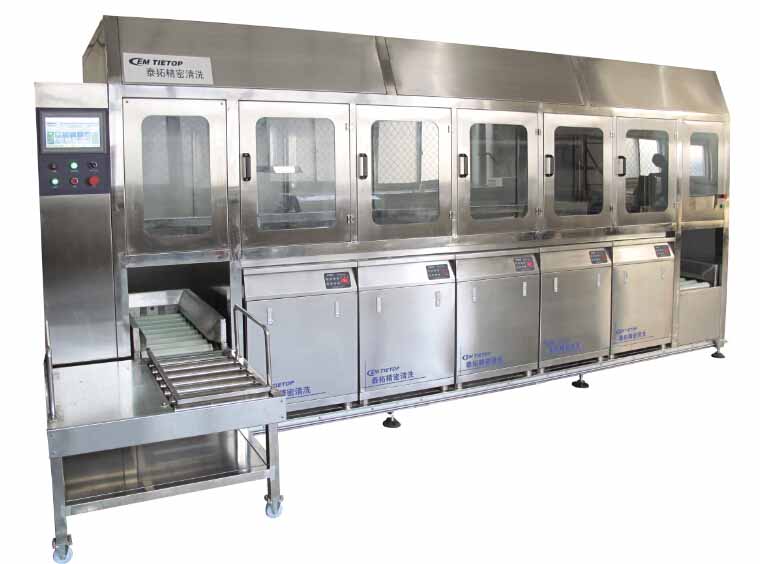

TS100-5M-FAC
The characteristics of equipment
Modular system in longitudinal direction, saving footprint space
For mass production
Modular system, combine function modules to get required process
The fi ltration system is a standard option for cleaning unit
Standardization module unit, easy for maintenance and replacement
PLC control, manual and auto are easy to shift
The welding or aluminum alloy frame

Process:
loading---us&sui clean---us&sui rinse---spray rinse---hot air dry---
hot air dry---unload
Product video
TS100-5M-FAC
Parameter table
 External dimensions:4450mm(L)×2350mm(W) ×2650mm(H)
  1.  Main dimensions:800mm(L)×1730mm(W) ×2400mm(H)
  2.  Main Tank dimensions:650mm(L)×330mm(W) ×520mm(H)
  3.  Tank dimensions:650mm(L)×330mm(W) ×430mm(H)
  4.  Feeding height:570mm
  5.  Electrical worktop height: 1600mm
  6.  Maximum load:40Kg
  7.  Power:< 32KW
  8.  Voltage/Hz:380V AC/50
  9.  Filling valve:R 3/4
  10.  Drain valve:R  1-1/2
  11.  Over flow weir valve: Φ12mm/0.3~0.7mpa
  12.  Weight:1700 kg
