Position:HOMEModular spray cleaning system
TCM-V400SIA
The characteristics of equipment

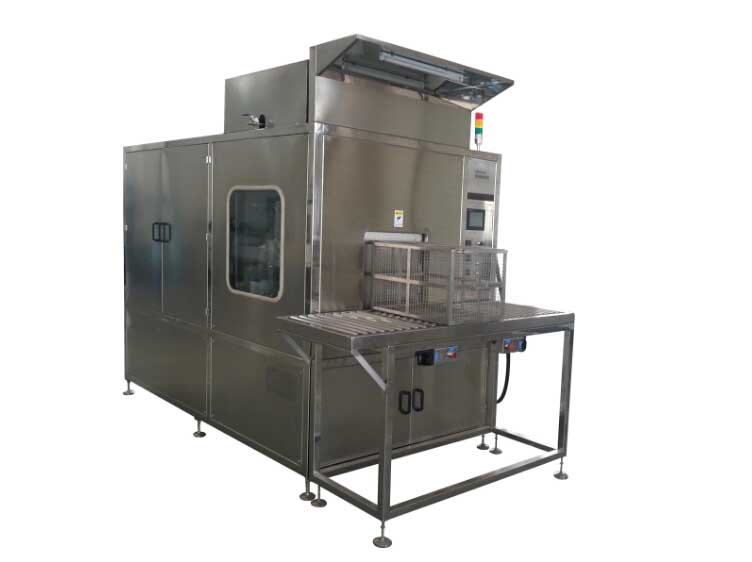

TCM-V400SIA Rotating cleaning system
Design for the cleaning agent is not fl ammable,
especially on the cleaning agent of MPC Technology
Due to the use of the cleaning chamber and the spraychamber of innovation design,
cleaning agentconsumption substantially reduced
PLC control, set the corresponding procedures, simple operation and maintenance
System generation full closed deionized water andpollutant measurement system built in complete
Process:
loading---Rotating sprying clean---
Rotating sprying rinse---Air knives cut---unload
Product video
Parameter table
 External dimensions:3045mm(L)×1480mm(W) ×2480mm(H)
  1.  Spraying chamber dimensions:560mm(L)×400mm(W) ×370mm(H)
  2.  Cleaning basket dimensions:560mm(L)×400mm(W) ×370mm(H)
  3.  Feeding height:950±20mm
  4.  Maximum load:50Kg
  5.  Spraying pressure:1.6-1.6Mpa
  6.  Power:< 71KW
  7.  Voltage/Hz:380V AC/50
  8.  pressurized pressure:0.6Mpa
  9.  Over flow weir valve: Φ12mm
  10.  Weight:1700 kg
